Patent Number: 6,062,446

Date of Patent: May 16, 2000

COMBINED BACKPACK, COT AND TENT

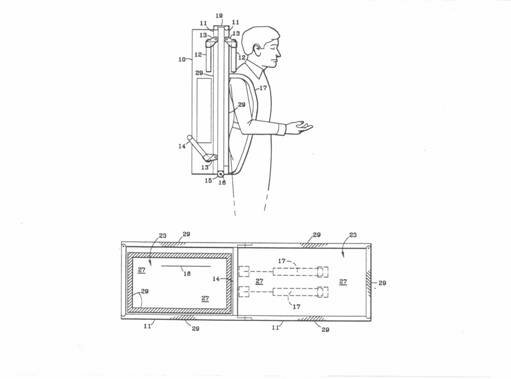

This invention is a simplified combination backpack, cot and tent formed and integrated around a lightweight hinged metal frame which unfolds at hinge to form cot and internal tent frame structure. The tent, with draft skirt stored within the two halves of the folded frame, is then erected for shelter protection. After the frame is unfolded, the backpack will be suspended from the underside of the cot, off the ground and accessible from inside the tent through the cot fabric by means of a zipper.
